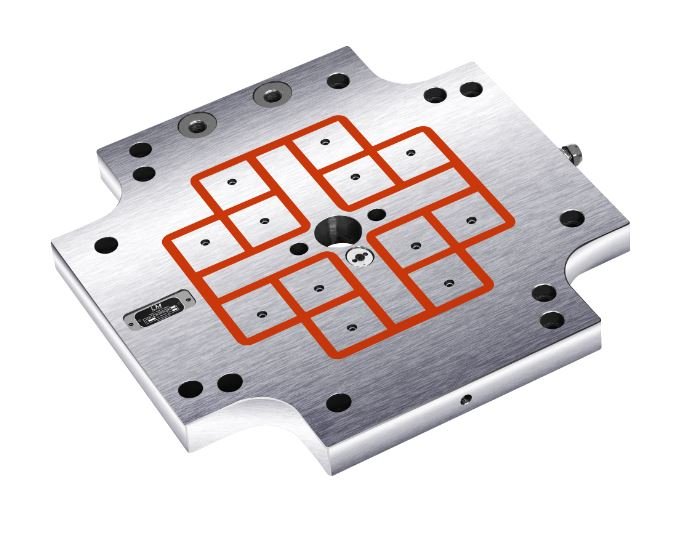

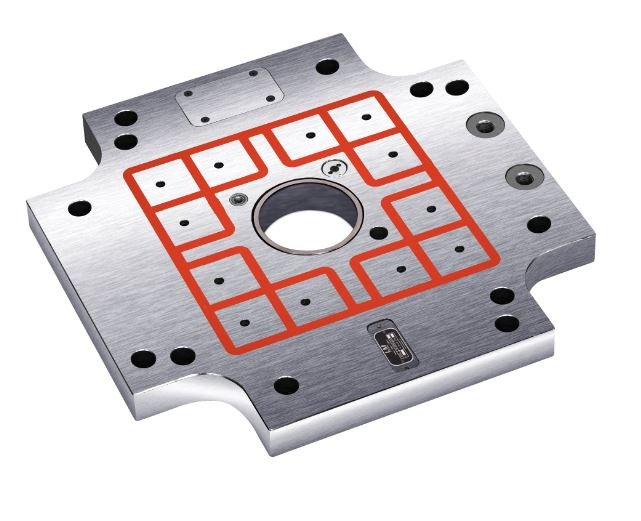

Magnetic Tables for Plastic Injection Molding Machines

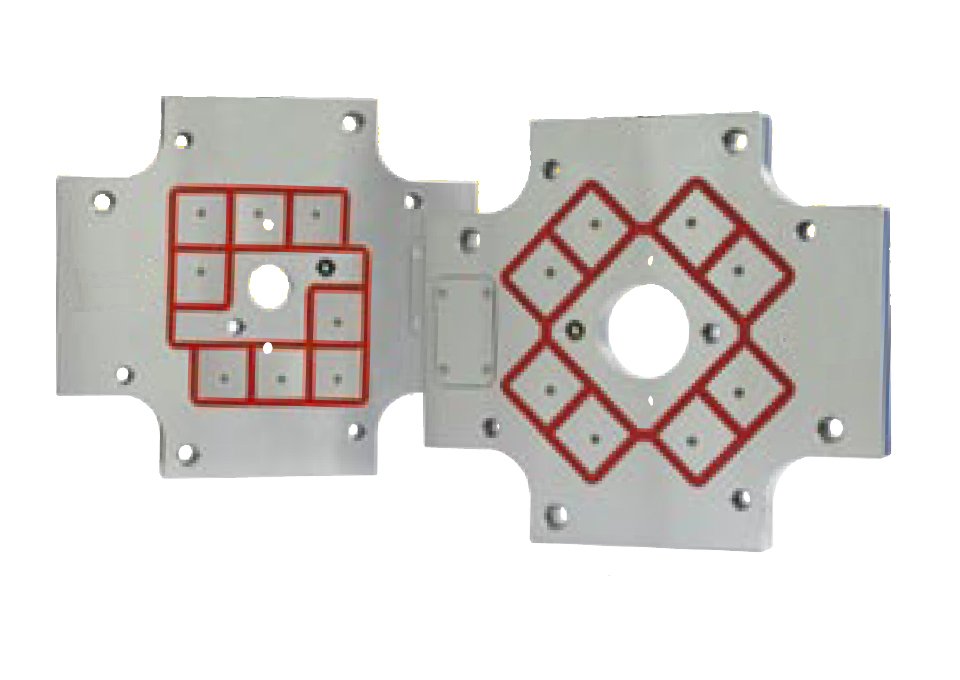

MKS 50
Maximum Clamping Force 5.0 Ton
Clamping force when all posts are closed48KN. Dimensions: 510 x 510 x 46 mm Weight to be connected, 1000kg / 200 x 2050 mm
MKS 75
Maximum Clamping Force 7.5 Ton
Clamping force when all poles are covered72KN. Dimensions: 560 x 560 x 46 mm Weight of the mold to be connected, 1500kg / 250 x 250 mm
MKS 100
Maximum Clamping Force10.0 Ton
Clamping force when all poles are covered 96KN. Dimensions : 690 x 640 x 46 mm Weight of the mold to be connected 2400Kg / 250 x 250 mm

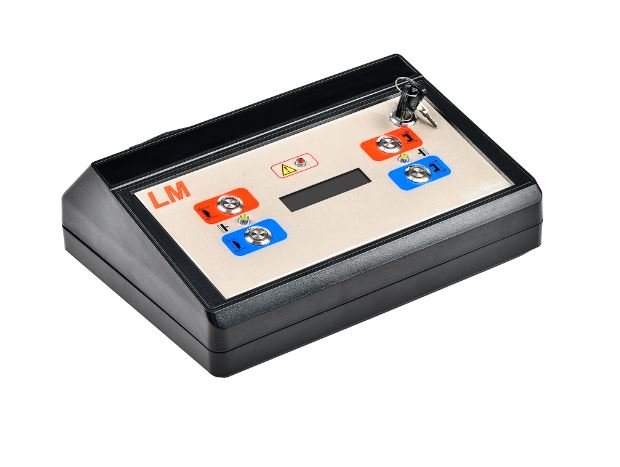

MTKK2A 230 VAC
Compact Electronic Control Unit It consumes electricity for few seconds to magnetize and also to magnetize. Even if the energy is cut off, it continues to hold the pattern. There is a safety switch and a safety sensor.
